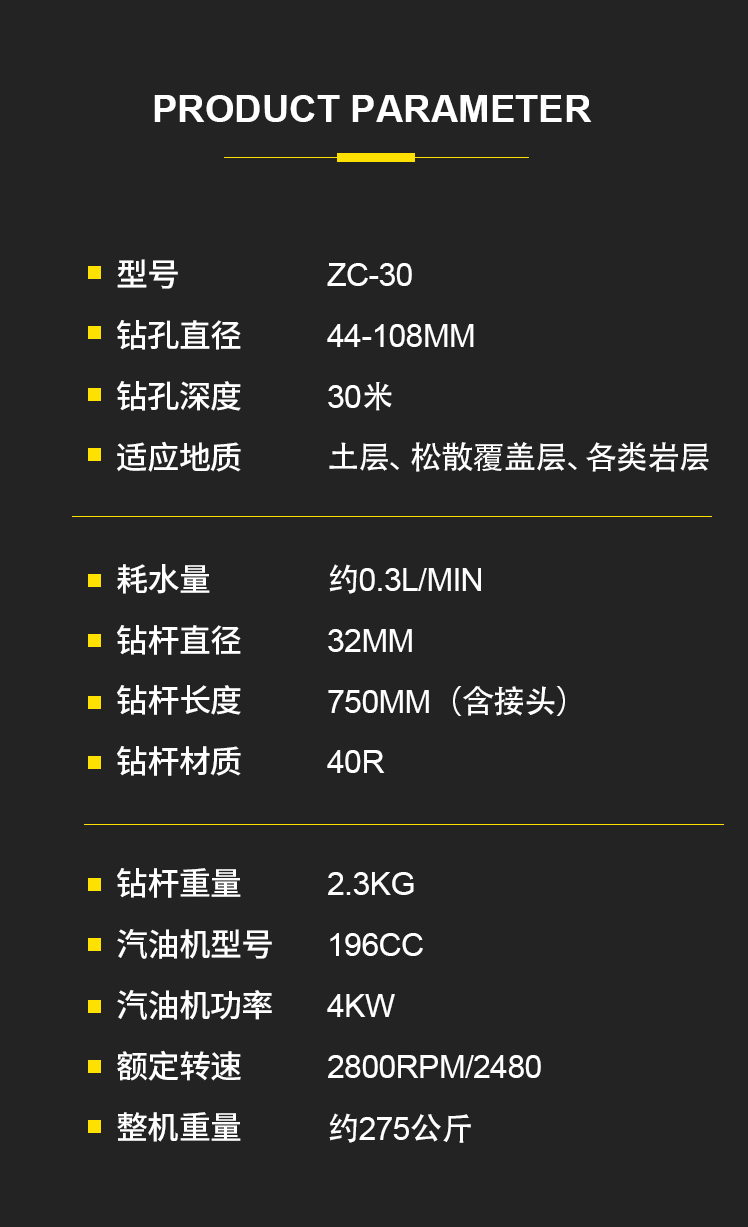

| Category | Value | unit |
| Hole diameter | 44-108 | mm |
| Borehole depth | 30 | m |

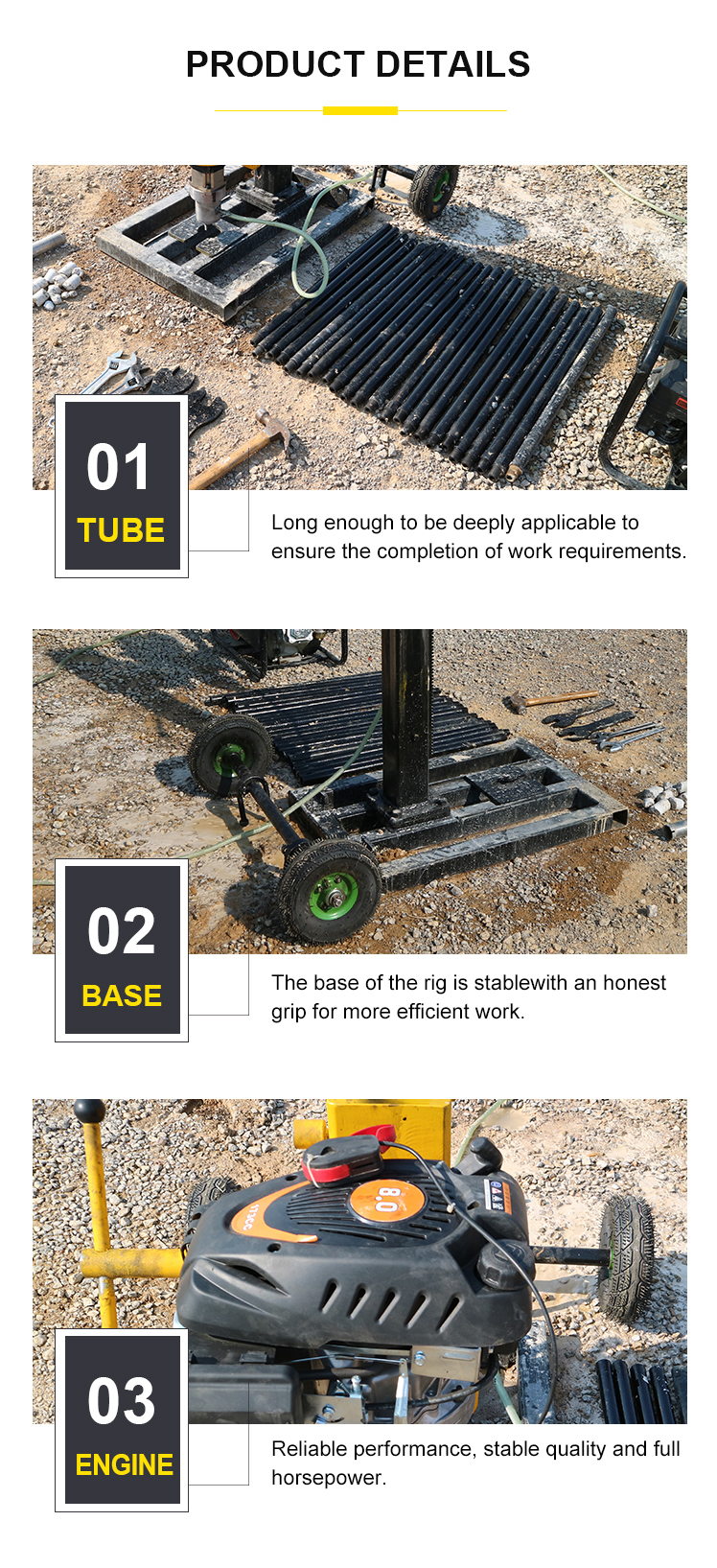

| Drill pipe diameter | 32 | mm |
| Length of drill pipe (including joints) | 750 | mm |
| Drill pipe weight | 2.3 | kg |
| Water consumption | about0.3 | L/min |
| Complete machine quality | 275 | kg |
| Rated speed | 2800 | r/min |

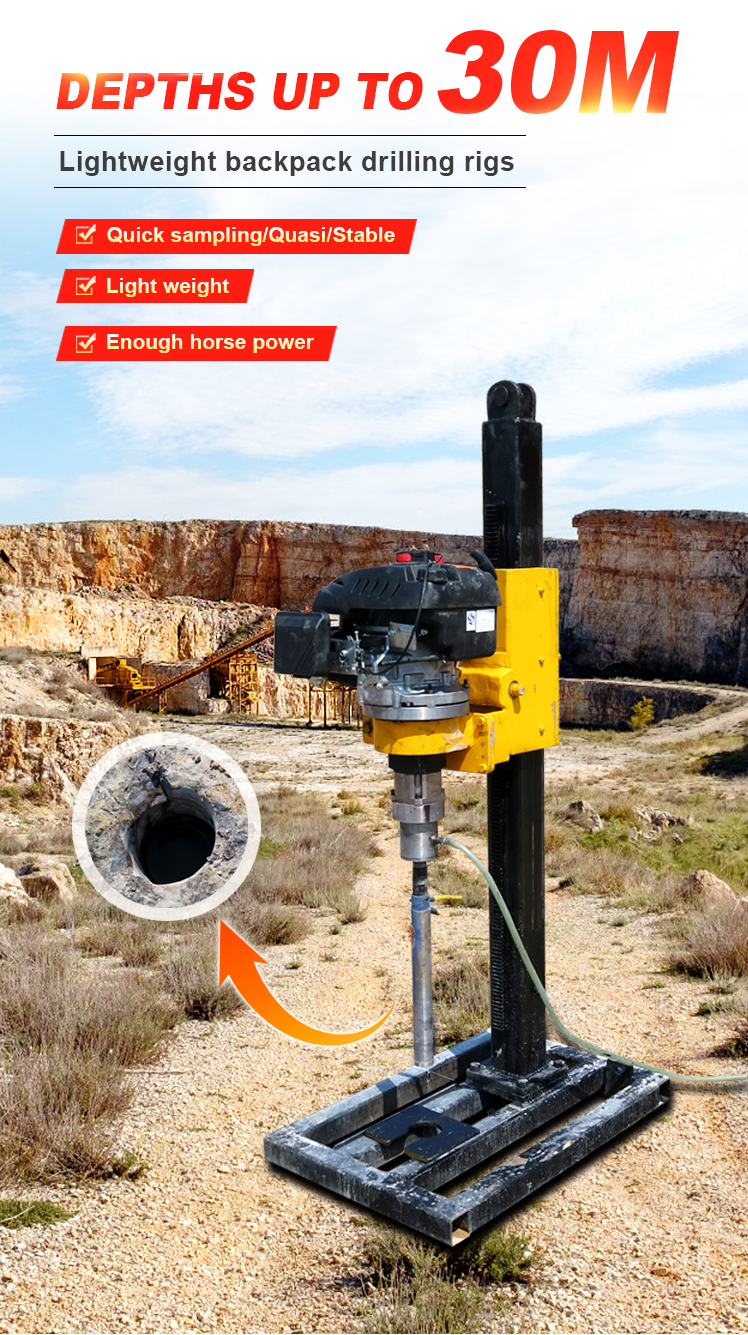

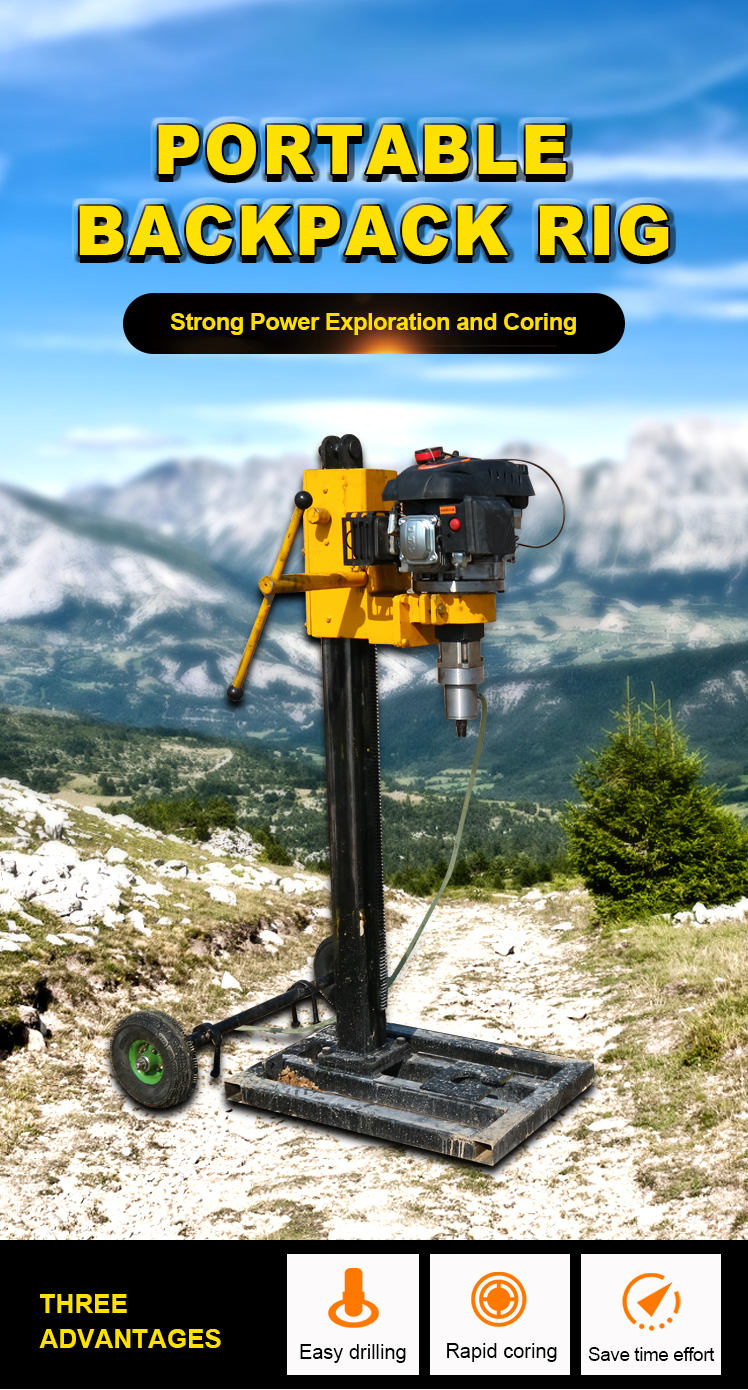

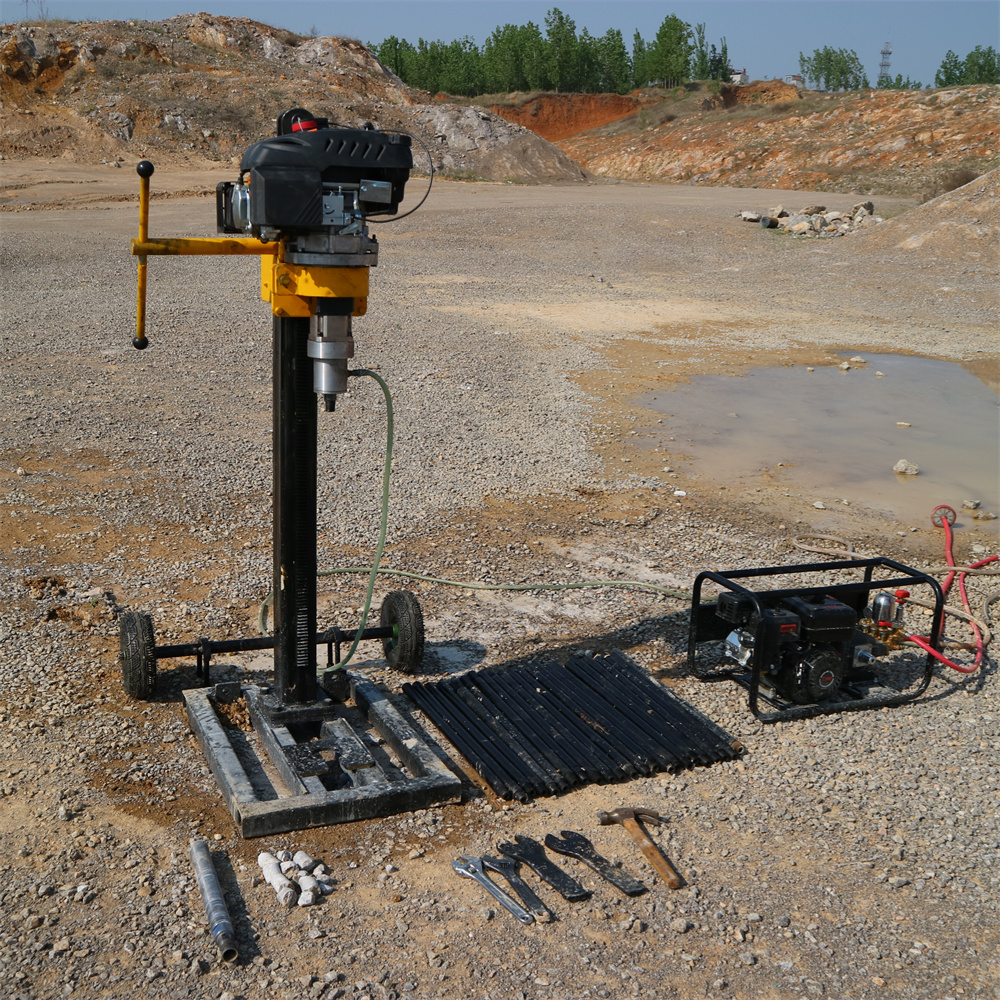

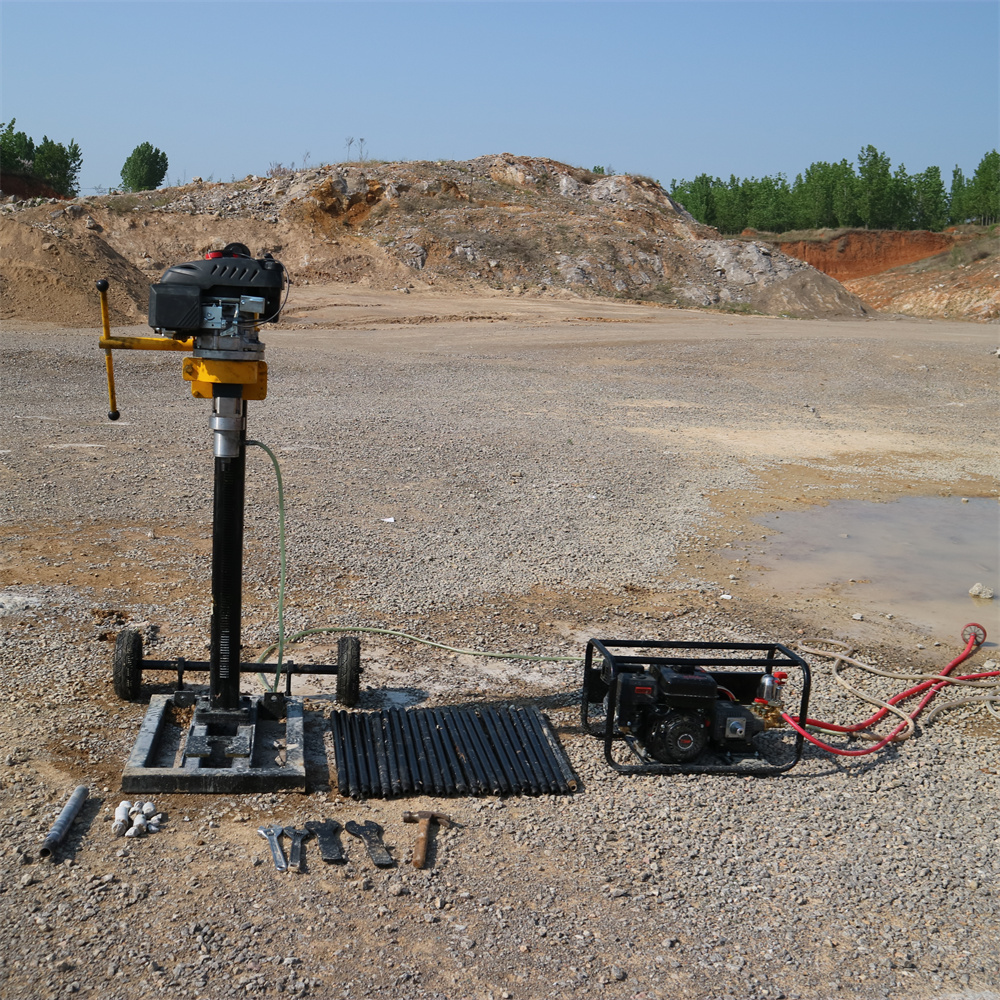

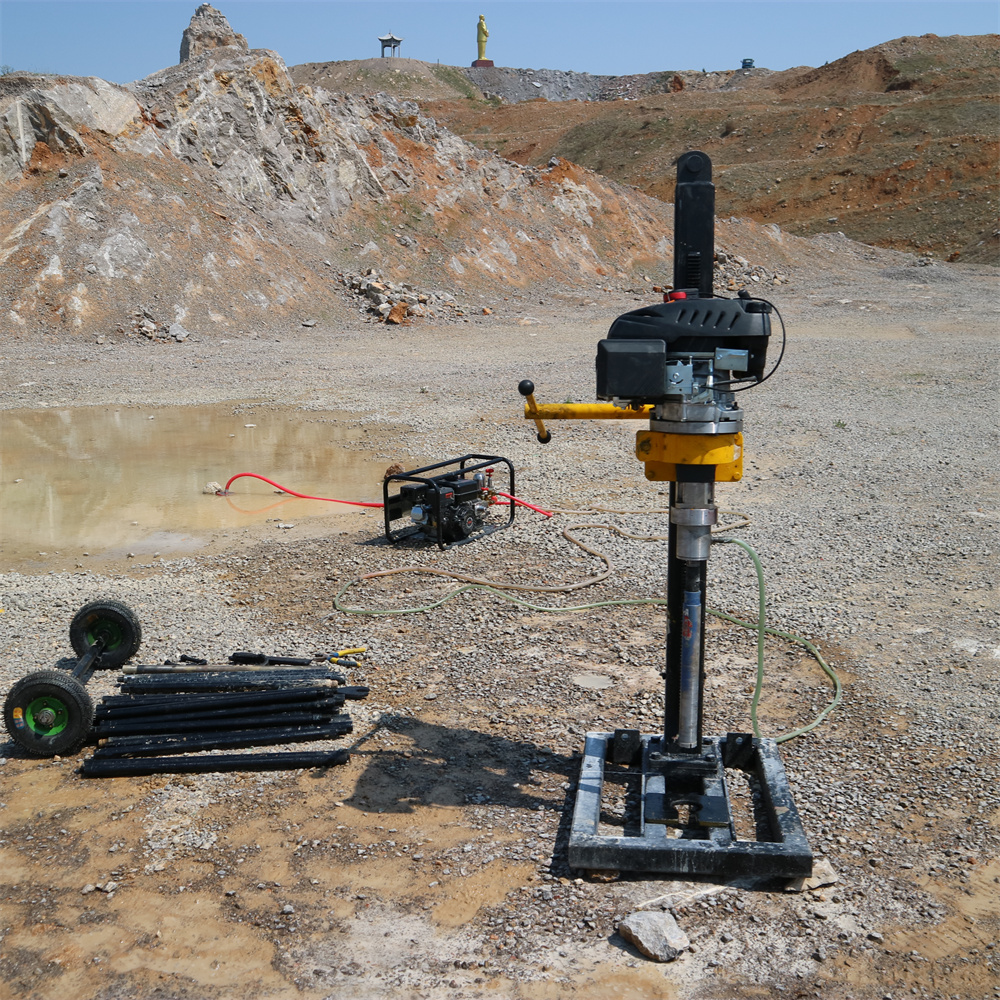

With its portable and efficient performance, the backpack drilling rig series has been defined as an indispensable shallow sampling tool by the majority of users in the industry after years of practice. Backpack series of drilling RIGS mainly include the United States Sauer generation/Sauer II generation and Canada Mini and other dynamic drilling RIGS. Different dynamic configurations are more suitable for shallow exploration and sampling in different strata and geological conditions.
This series of drilling RIGS are mainly suitable for high mountains, inconvenient transportation and water shortage areas. They are easy to operate and can replace traditional trough exploration, well excavation and geophysical and geochemical anomaly verification. And can greatly reduce vegetation damage to protect the ecological environment; It is an indispensable technical means in shallow geological exploration such as regional geological mapping, geophysical and chemical exploration sampling, paleomagnetic sampling and geological disaster prevention
